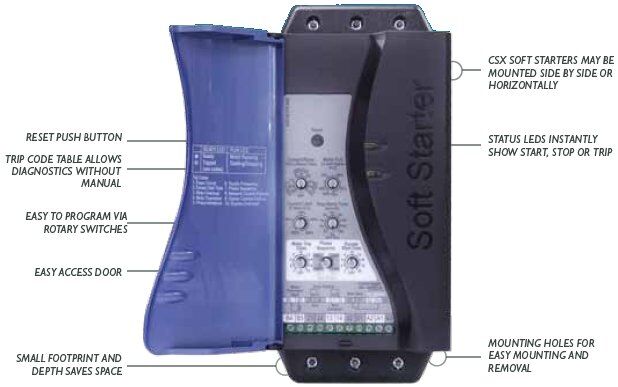

FEATURES
| CSX | CSXi | |
| STARTING FUNCTIONS | ||
| Timed Voltage Ramp |  | |
| Current Limit | | |
| Current Ramp | | |
| STOPPING | ||
| Coast To Stop | | |
| Soft Stop | | |
| PROTECTION | ||
| Motor Overload | | |
| Phase Loss | | |
| Excess Start Time | | |
| Phase Sequence | | |
| Current Imbalance | | |
| Motor Thermistor | | |
| Power Circuit Fault | | |
| Supply Frequency | | |
| Instantaneous Overcurrent | | |
| Bypass Overload | | |
| Communications Failure | | |
| CSX | CSXi | |
| INTERFACE | ||
| Fixed Relay Output (Main Contactor Relay) | | |
| Programmable Relay (Trip or Run) | | |
| Run Relay Output | | |
| ACCESSORIES (OPTIONAL) | ||
| Remote Operator | | |
| Modbus Interface | | |
| Profibus Interface | | |
| DeviceNet Interface | | |
| PC Software | | |
| Pump Application Module | | |
SPECIFICATIONS
| SPECIFICATIONS | |
| General | |
| Current Range | 18 A ~ 200 A (nominal) |
| Motor connection | In-line |
| Bypass | Internal |
| Supply | |
| Mains Voltage (A1, A2, A3) | |
| CSX-xxxx-V4 | 3 x 200 VAC ~ 440 VAC (± 10%/ -15%) |
| CSX-xxxx-V6 | 3 x 200 VAC ~ 575 VAC (± 10%/ -15%) |
| Control Voltage (A1, A2, A3) | |
| C1 | 110 ~ 240 VAC (+ 10% / -15%) |
| or 380 ~ 440 VAC (+ 10% / -15%) | |
| C2 | 24 VAC AC/24 VDC (+ 20%) |
| Mains Frequency | 45 Hz to 66 Hz |
| Inputs | |
| Start (terminal 01) | Normally open, 300 VAC max |
| Stop (terminal 02) | Normally closed, 300 VAC max |
| Motor Thermistor (B4, B5) (CSXi only) | |
| Relay Outputs | |
| Main Contactor (13, 14) | Normally Open |
| 6A, 30 VDC resistive / 2A, 400 VAC, AC11 | |
| CSX Run Relay | Normally Open |
| CSXi Programmable Relay (23, 24) | Normally Open |
| 6A, 30 VDC resistive / 2A, 400 VAC, AC11 | |
| Environmental | |
| Protection | |
| CSX-007 ~ CSX-055 | IP20 |
| CSX-075 ~ CSX-110 | IP00 |
| Operating temperature | -10 °C , max 60 °C with derating |
| Humidity | 5% to 95% Relative Humidity |
| Conformal Coating | Standard |
CSX electrical schematic
CSXi electrical schematic
