(Obsolete) Saftronics PC10 Mini Vector AC Drives
(Obsolete FINCOR Series 5750)

Saftronics PC10 AC Drives are Obsolete and No Longer Available – They have been Replaced with the Saftronics CV10 Compact Vector AC Drives.

• Saftronics PC10 Mini Vector AC Drives – Part Numbers, Pricing, Dimensions & Weights
• Options & Accessories
  • SF-10 Ethernet Module Kit
  • PC10  24 VDC or 24/120 VAC Input + Relay Option Card
  • 24 VDC or 24/120 VAC Interface Card Kit (PC10, GP10, or VG10 Inverter)
  • PC10 Relay Output Card
  • HMI Pump Controller
  • PC10 120 VAC Option Card
  • Palm Pilot Saflink Kit
• Dynamic Braking
• Drive Ratings Efficiency and Watts Loss
• Standard Specifications
• Dimension Sheets
  • Part Number: PC102F12-9, PC102F25-9, PC102F50-9 & PC102001-9
  • Part Number: PC102002-9, PC102003-9, PC104F50-9, PC104001-9, PC104002-9 & PC104003-9
  • Part Number: PC102005-9 & PC104005-9
  • Part Number: PC102007-9, PC102010-9, PC104007-9 & PC104010-9
• NEMA 1 Kit Dimensions
• Basic Wiring Diagram

Options & Accessories

Palm Pilot Saflink Kit

KIT Part No.	KIT Includes
	Software Part No.	Palm Pilot Part No.	HotSync Cable Part No.	RS485 Converter Part No.	SAFLINK Cable Part No.
046-7030	046-3030	046-9100	046-9018	*046-9024	GP10 / VG10	PC10
					046-9016	018-3009

*(2) AAA Batteries (P/N G6001-10) are included

Function

To provide an economical, and portable means of using the Saflink program
with the PC10, GP10 or VG10

Feature

• Ease of connecting to the drive in the most demanding environments.

• HotSync with PC Saflink software (Future Version)

• An economical means of implementing Saflink which allows you to:

  • Edit individual parameters

  • Load and save parameters

  • Compare parameters

  • Control the drive with built-in Digital Operator

  • Store / Retrieve parameter files

  • Monitor 4 independent signals

  • Automatically scan drive functions

  • Readout Diagnostics and History

Specifications

Palm Pilot Operating System – 3.5 and up

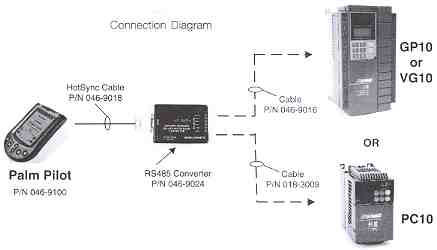

Connection Diagram

To purchase any Saftronics drives or information regarding Saftronics drives and Accessories, contact us at:
Phone (815) 725-9696,  Toll Free (866) 492-9888, Fax (815) 725-9393 or
E-mail info@joliettech.com
