(Obsolete) Saftronics PC10 Mini Vector AC Drives
(Obsolete FINCOR Series 5750)
Saftronics PC10 AC Drives are Obsolete and No Longer Available – They have been Replaced with the Saftronics CV10 Compact Vector AC Drives.
- Saftronics PC10 Mini Vector AC Drives – Part Numbers, Pricing, Dimensions & Weights
- Options & Accessories
- SF-10 Ethernet Module Kit
- PC10 24 VDC or 24/120 VAC Input + Relay Option Card
- 24 VDC or 24/120 VAC Interface Card Kit (PC10, GP10, or VG10 Inverter)
- PC10 Relay Output Card
- HMI Pump Controller
- PC10 120 VAC Option Card
- Palm Pilot Saflink Kit
- Dynamic Braking
- Drive Ratings Efficiency and Watts Loss
- Standard Specifications
- Dimension Sheets
- NEMA 1 Kit Dimensions
- Basic Wiring Diagram
Options & Accessories
24 VDC or 24/120 VAC Interface Card Kit (PC10, GP10, or VG10 Inverter)
Part number – 043-0303
Function
Designed to provide a hardware interface between the users’ 24 VDC or 24/120 VAC input control circuitry and the Saftronics PC10, GP10, or VG10 inverter. It is a stand alone card that mounts remotely in snap-track with screw type termination. Also provides (4) form C programmable output relays.
Specifications
Input –
Control Voltage: 24 or 120 VAC RMS (jumper selectable)
Input Resistance: 120 VAC – 50 kohm
24 VDC / 24 VAC – 10 kohm
Isolation Voltage: 5 kVAC
Output –
Output Relays: Form C – 120 VAC @ 0.5A, 24 VDC @ 1.0A

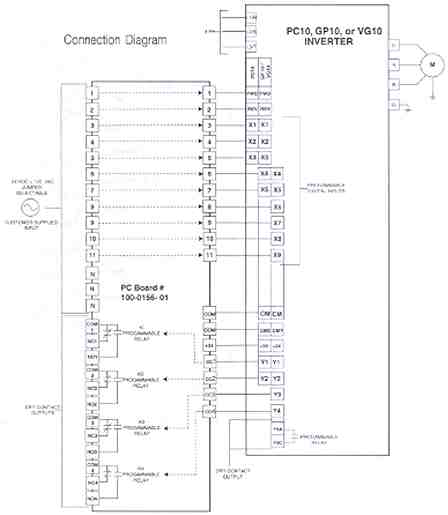

Connection Diagram
