Series 5700 controllers are offered in 13 basic power frame configurations comprising 47 models covering the range of 1/4 to 600 HP.

230VAC, 3 phase, 50/60Hz Input, Enclosed NEMA 1
Horsepower Amps Model Number Dimensions
HxWxD (Inches)
Price
Constant
Torque
150% O/L
Variable
Torque
110% O/L
1/4 1/4 1.5 5711S00021A 10.24×4.33×5.12

Obsolete

1/2 1/2 3 5711S00051A 10.24×4.33×5.12
Obsolete
1 1 5 5711S00101A 10.24×4.33×5.71
Obsolete
2 2 8 5712S00201 10.24×5.91×5.71
Obsolete
3 3 11 5712S00301A 10.24×5.91×5.71
Obsolete
5 5 17 5712S00501A 10.24×5.91×5.71
Obsolete
7.5 22 5713S00701A 10.24×8.66×7.68
Obsolete
7.5 10 25/29 5713S01001A 10.24×8.66×7.68
Obsolete
10 15 33/42 5713S01501A 10.24×8.66×7.68
Obsolete
15 20 46/55 5714S02001A 15.75×9.84×7.68
Obsolete
20 25 59/68 5714S02501A 15.75×9.84×7.68
Obsolete
25 30 74/80 5714S03001A 15.75×9.84×7.68
Obsolete
30 40 87/115 5715S04001A 29.7×13.5×10
Obsolete
40 50 115/145 5715S05001A 29.7×13.5×10
Obsolete
50 60 145/180 5717S06001A 33.1×14.9×10.6
Obsolete
60 75 180/215 5719S07501A 38×14.9×10.6
Obsolete
75 100 215/283 5702S10001A 38×14.9×10.6
Obsolete
100 125 283/346 5704S12501A 41.3x21x11.2
Obsolete
125 150 346/415 5705S15001A 50.4×26.9×14.2
Obsolete
To purchase an item, contact us at: Phone (815) 725-9696,
Toll Free (866) 492-9888, Fax (815) 725-9393 or E-mail info@joliettech.com
460VAC, 3 phase, 50/60Hz Input, Enclosed NEMA 1
Horsepower Amps Model
Number
Dimensions
HxWxD (Inches)
Price
Constant
Torque
150% O/L
Variable
Torque
110% O/L
1/2 1/2 1.5 5711S00053A 10.24×4.33×5.12

Obsolete

1 1 2.5 5711S00103A 10.24×4.33×5.71
Obsolete
2 2 3.7 5712S00203A 10.24×5.91×5.71
Obsolete
3 3 5.5 5712S00303A 10.24×5.91×5.71
Obsolete
5 5 9 5712S00503A 10.24×5.91×5.71
Obsolete
7.5 12.5 5713S00703A 10.24×8.66×7.68
Obsolete
7.5 10 13/16.5 5713S01003A 10.24×8.66×7.68
Obsolete
10 15 18/23 5713S01503A 10.24×8.66×7.68
Obsolete
15 20 23/30 5714S02003A 15.75×9.84×7.68
Obsolete
20 25 30/37 5714S02503A 15.75×9.84×7.68
Obsolete
25 30 39/44 5714S03003A 15.75×9.84×7.68
Obsolete
30 40 45/60 5715S04003A 29.7×13.5×10
Obsolete
40 50 60/75 5715S05003A 29.7×13.5×10
Obsolete
50 60 75/91 5716S06003A 29.7×14.9×10.6
Obsolete
60 75 91/112 5718S07503A 34.6×14.9×10.6
Obsolete
75 100 112/150 5701S10003A 34.6×14.9×10.6
Obsolete
100 125 150/176 5702S12503A 38×14.9×10.6
Obsolete
125 150 176/210 5703S15003A 38x21x12.4
Obsolete
150 200 210/253 5703S20003A 38x21x12.4
Obsolete
200 250 253/304 5706S25003A 53.1x21x14.2
Obsolete
250 300 304/377 5706S30003A 53.1x21x14.2
Obsolete
300 350 377/415 5707S35003A 55.1×26.9×14.2
Obsolete
350 400 415/485 5707S40003A 55.1×26.9×14.2
Obsolete
450 520 5707S45003A 55.1×26.9×14.2
Obsolete
400 500 520/650 5708S50003A 57.1×26.8×17.7
Obsolete
600 740 5708S60003A 57.1×26.8×17.7
Obsolete
500 700 650/840 5709S70003A 57.1×34.6×17.7
Obsolete
600 800 740/960 5709S80003A 57.1×34.6×17.7
Obsolete
To purchase an item, contact us at: Phone (815) 725-9696,
Toll Free (866) 492-9888, Fax (815) 725-9393 or E-mail info@joliettech.com

1/4 through 800 HP
Adjustable Frequency AC Motor Controllers

  • 1/4-800 HP

  • 208/230/460 Volts Three-Phase

  • Microprocessor Based

  • PID Outer Loop Control

  • New Generation IGBT Power Devices

  • English Word Messages, Faults, Status, and Parameters

  • Enclosure Types NEMA 1
    NEMA 12 Ventilated
    NEMA 4 & 12 Kits
    Open Chassis

  • Output Fault Protected

  • Isolated Regulator

  • Cool, Quiet Motor Operation

  • UL/cUL/ CE Mark

  • V/F, Open Loop (Sensorless) Vector

  • Input Protected MOV

  • Communication – RS485Modbus RTU

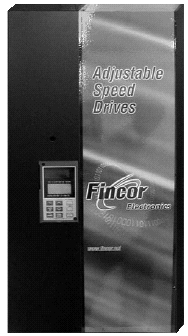

Fincor Series 5700 AC Drive Controllers
SERIES 5700 AC CONTROLLERS

GENERAL

Fincor Series 5700 controllers are general purpose, microprocessor based, software-controlled units representing significant advances in AC drive technology. Design features include a comprehensive operator control and programming panel for digital setup, troubleshooting, and self-diagnostics. Additional capabilities include remote interrogation, digital speed input and serial communication for direct control by programmable logic controllers and computers.

The Fincor Series 5700 Controllers offer two methods of motor control:

  1. Traditional Space Vector Volts per Hertz (V/F) control

  2. Sensorless Torque Control (Encoderless) for improved torque control over the rated speed range.

Fincor Series 5700 controllers provide wide range adjustable speed control of conventional AC induction motors in applications exhibiting a variety of load characteristics. The unit converts the fixed frequency and voltage of the AC line power source to a sine coded pulse width modulated (PWM) adjustable voltage and frequency output that will control induction motors over a wide speed range.

This is efficiently accomplished by a constant potential link coupled inverter system that maintains a uniformly high displacement power factor throughout the speed range without inducing undesirable voltage notch distortion back to the power source.

The power section uses insulated-gate bipolar transistors (IGBT’s) operating at carrier frequencies up to 15 KHz incorporating “soft switching” technology which provides low motor noise, high starting torque, and cool motor operation. The design features of the basic units shown in Figure 1, and available options allow application of the 5700 controllers to numerous industrial applications requiring constant horsepower, constant torque, or variable torque.

Electrical Codes:

Fincor 5700 controllers are designed and manufactured to comply with applicable standards established by the National Electric Code, and NEMA for industrial motor and control equipment. They are UL and Canadian UL listed and CE compliant.
