Commander SX

Go to Control Techniques, Solutions Through Innovation

NEMA 4X Washdown Drive

FEATURES

Performance Advantage

Open loop vector control with true space vector modulation

Precise control algorithm provides full torque down to 1 Hz for exceptional performance

Access to multiple parameter levels

Customizes the drive to meet each user’s needs: simple (level 1), flexible (level 2) and advanced (level 3)

XpressKey cloning module

Provides fast and cost-effective drive-to-drive parameter transfer and storage with no PC required

Static auto-tune

Allows fast motor/drive optimization without motor shaft rotation

Configurable analog and digital I/O

Customizes drive to the specific application

S-ramp accel / decel profiling

Provides smooth speed transitions, minimizing machine “jerk”

Built-in independent PID control

Eliminates the need for an external PID controller while providing “outer loop” control of a process variable

Built-in Motorised Potentiometer

Emulates the functionality of the traditional Motorized Potentiometer with increase / decrease pushbuttons

8 Preset speeds with independent accel / decel ramps

Allows predetermined speed sequencing via logic inputs

Selectable Stopping modes including Ramp, Coast, DC Injection, and Dynamic Braking (except size 1)

Added flexibility meets many application requirements

Full EMC compliance with optional filter

Meets global standards for worldwide use

RATINGS:

200 to 240 VAC 3 Phase + 10%
Motor
HP
kW
Input
Phase
100%
Output
Current (A)
150% Overload
Current for 60s
Size Order Code Price
1
0.75
3 4.5 6.8 1 SX13200075PB
CALL
2
1.5
3 8 12 2 SX23200150PB
CALL
3
2.2
3 10 15 2 SX23200220PB
CALL
5
4.0
3 16.5 25 3 SX33200400PB
CALL
380 / 480 VAC + 10%
Motor
HP
kW
Input
Phase
100%
Output
Current (A)
150% Overload
Current for 60s
Size Order Code Price
1
0.75
3 2.5 3.8 1 SX13400075PB
CALL
2
1.5
3 4.5 6.8 1 SX13400150PB
CALL
3
2.2
3 6 9 2 SX23400220PB
CALL
5
4.0
3 10 15 2 SX23400400PB
CALL
7.5
5.5
3 13.5 20 3 SX33400550PB
CALL
10
7.5
3 16.5 25 3 SX33400750PB
CALL
Motor horsepower based on typical 230 / 460 VAC four-pole motor ratings. Select model based on actual motor current rating.
    Order String

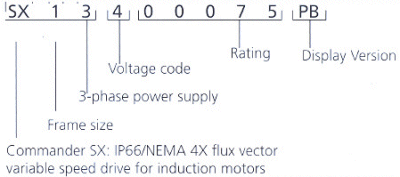

Control Techniques Commander SX NEMA 4X Washdown AC Drives Order String

Information provided by Control Techniques, a world leader in the design, production and marketing of electronic drives for the control of electric motors.
