(Obsolete) Saftronics GP10 – General Purpose Open Loop Vector AC Drive (Obsolete FINCOR Series 5700)

Options & Accessories

Name GP10 / VG10 24 VDC or 24/120 VAG Interface Option Card

Part Number 100-0171-01

Function Designed to provide a hardware interface between the users’ 24 VDC 120 VAG input control circuitry and the Saftronics’ GP10 / VG10 inverter. It has 5 control inputs including FWD and REV with screw type  ermination. It assembles directly into the inverter as an option card.

Specifications
Input: Control Voltage: 120 VAG RMS
  Input Resistance: 23 kOhm
  Isolation Voltage: 5 kVAC

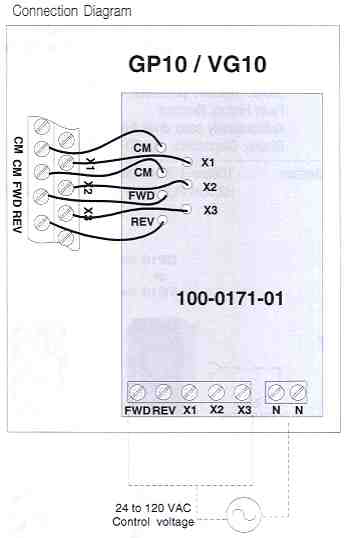

Connection Diagram

Connection Diagram GP10 / VG10 24 VDC or 24/120 VAG Interface Option Card
